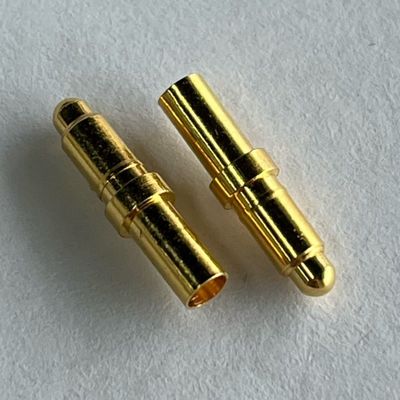

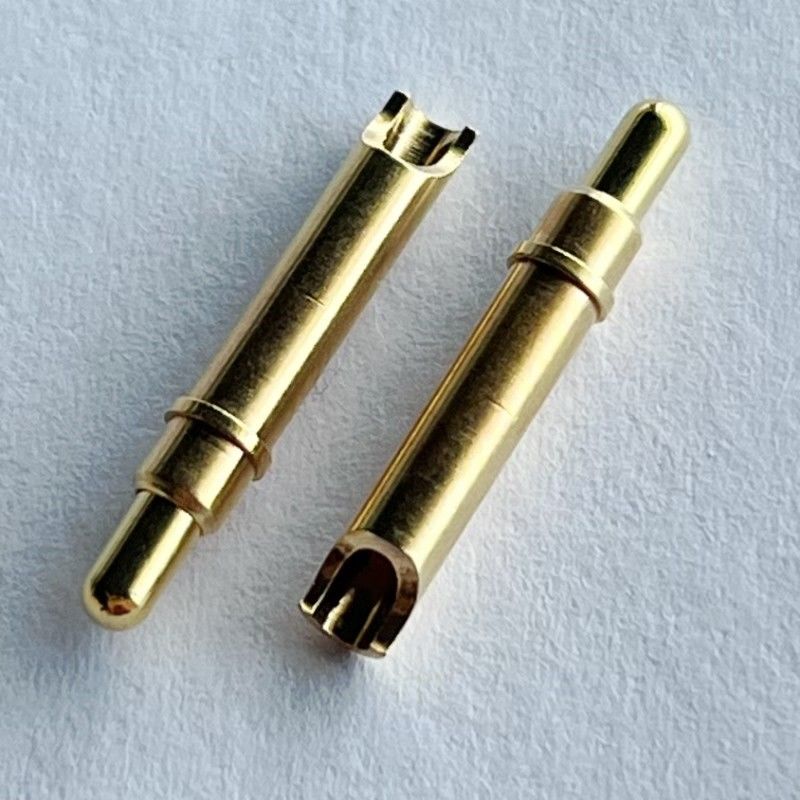

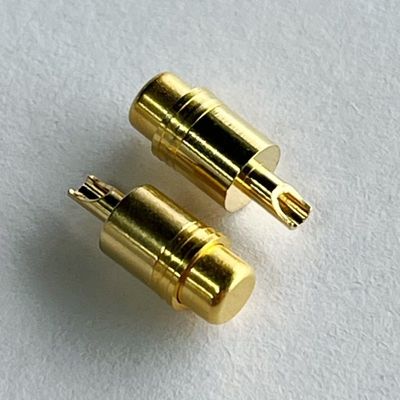

Gold Plated SMT Pogo Pin for Power Application Soldering Type

Productdetails:

Place of Origin:	CHINA
Merknaam:	HONSHI
Certificering:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A20XXXXXSWX01

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	100 pieces
Prijs:	Negotiates
Packaging Details:	PE Bag,Tube,Reel Packaging
Delivery Time:	10~15Day
Payment Terms:	T/T,Paypal
Supply Ability:	990000pcs

Contact

Gedetailleerde productomschrijving

Specification::	Spring Pogo Pin	Type:	Solder Type
Pin Length:	10.0mm or can be custom	Material:	Brass(C3604,C6801)
Spring:	SUS304	Plated:	Gold palted(3U") can customized
Salt Spray Test:	72H	Applications:	PCB,power ,charging equipment
Sample:	Support samples with 1weeks

Gold Plated SMT Pogo Pin for Power Application Soldering Type

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP	Spring force:	70g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	1.4mm or Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	1.5mm or Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance To Solder Heat:	260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

Gold Plated SMT Pogo Pin for Power Application Soldering Type 0

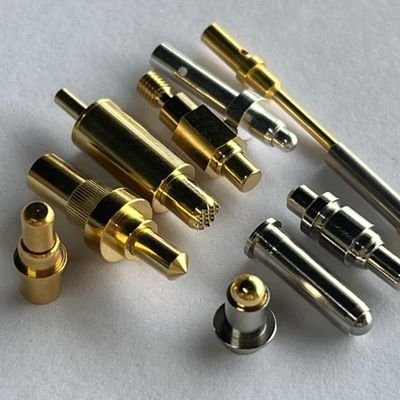

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

Gold Plated SMT Pogo Pin for Power Application Soldering Type 1

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
